Owner's Manual DF150AP, DF175AP, DF200AP Wiring Diagram

Added Jul 24, 2020Updated Nov 12, 2021
Owner's Manual DF150AP, DF175AP, DF200AP Wiring Diagram
Suzuki Marine

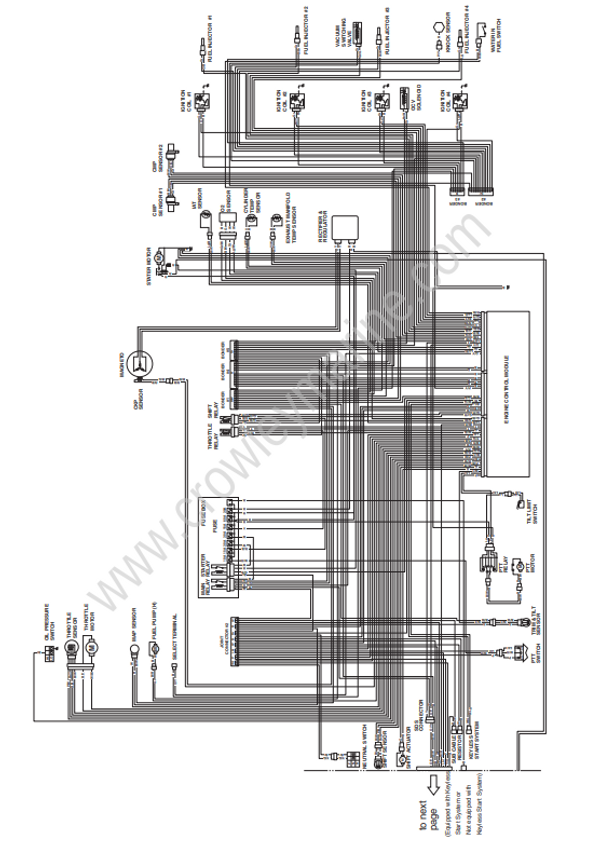

WIRING DIAGRAM

DF150AP/175AP/200AP

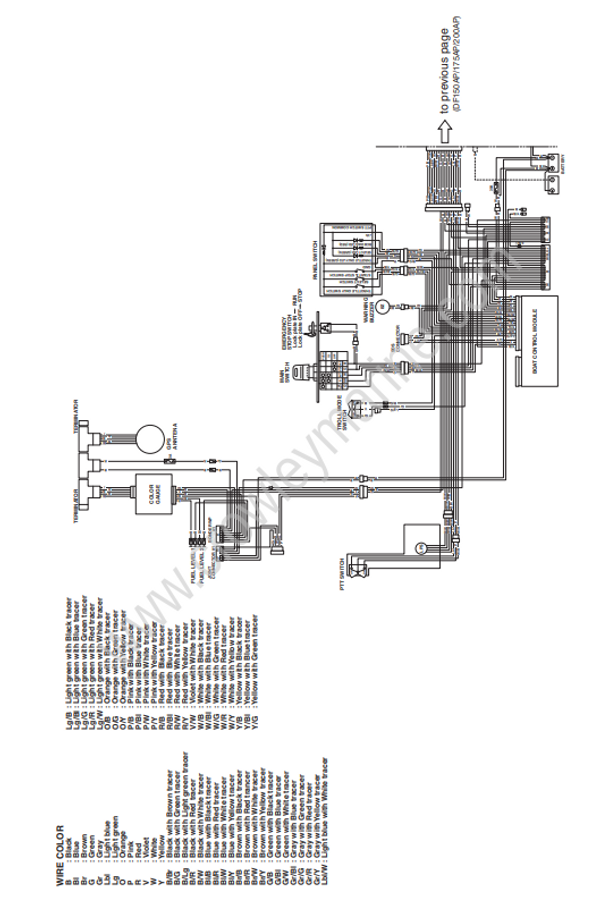

Equipped with Keyless Start System

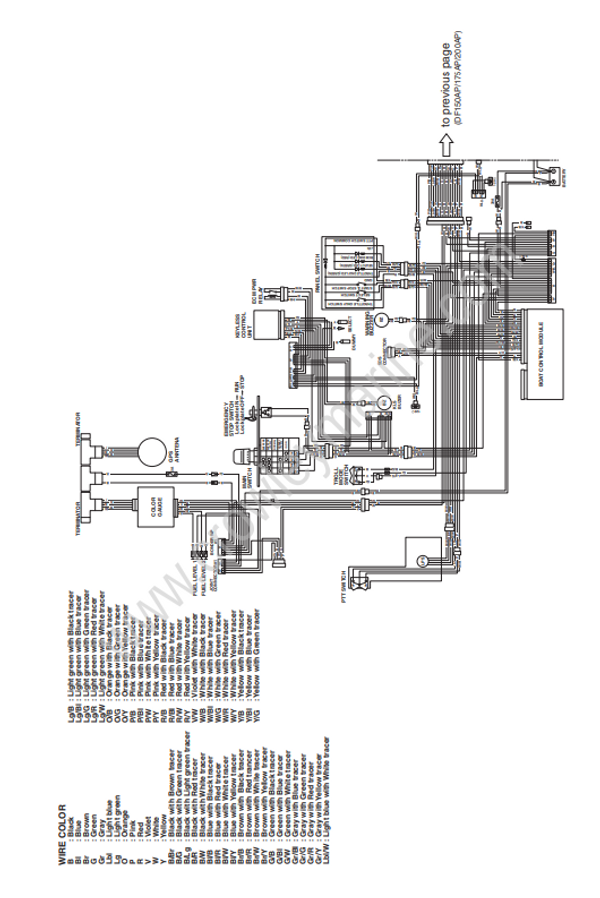

Not equipped with Keyless Start System
