Owner's Manual DF150, DF150ZG, DF150TG, DF175TG Wiring Diagram

Added Jul 24, 2020Updated Nov 11, 2021
Owner's Manual DF150, DF150ZG, DF150TG, DF175TG Wiring Diagram
Suzuki Marine

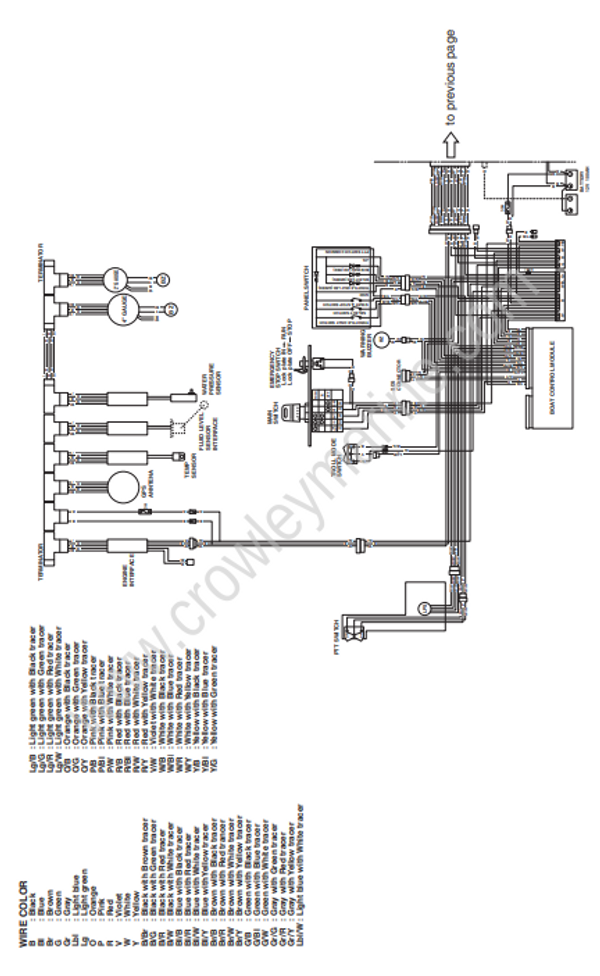

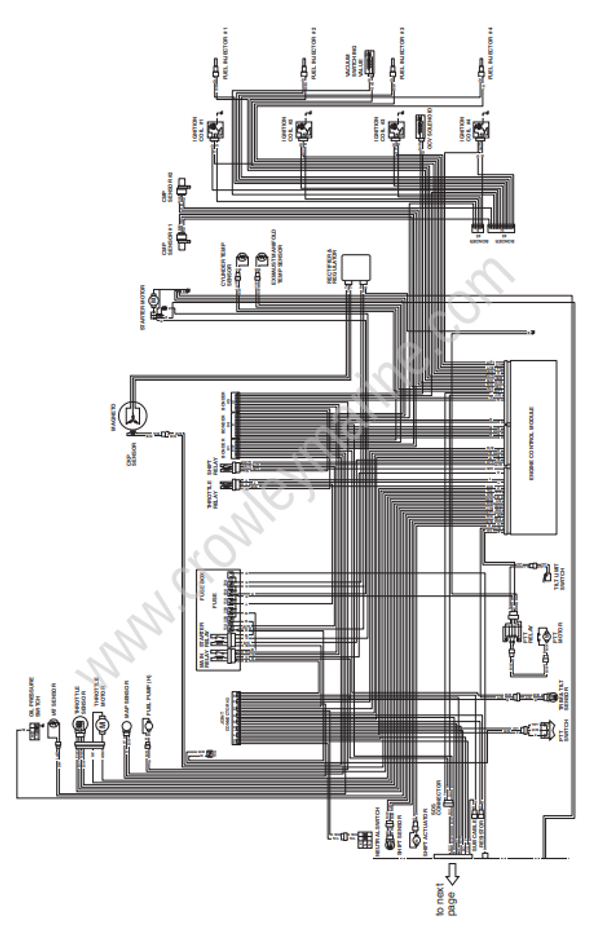

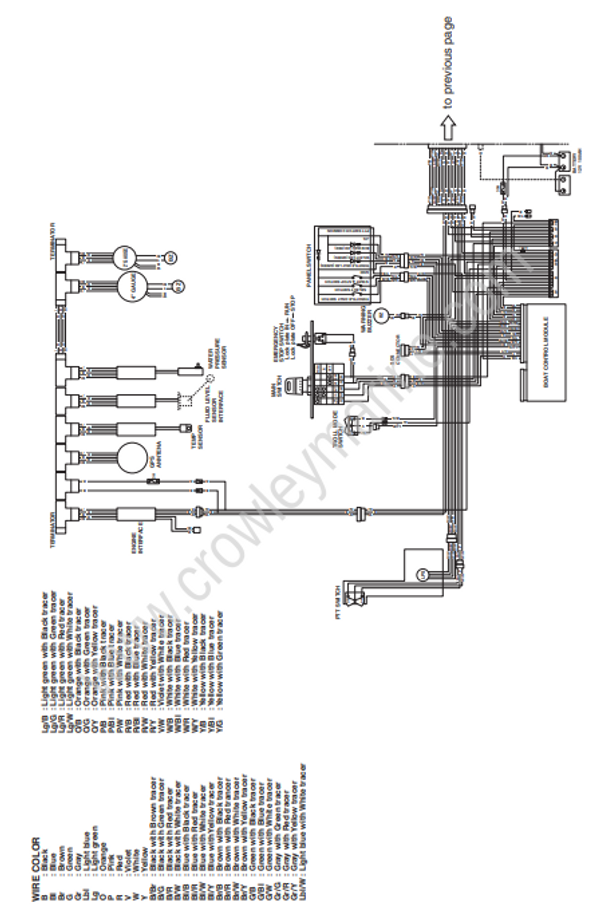

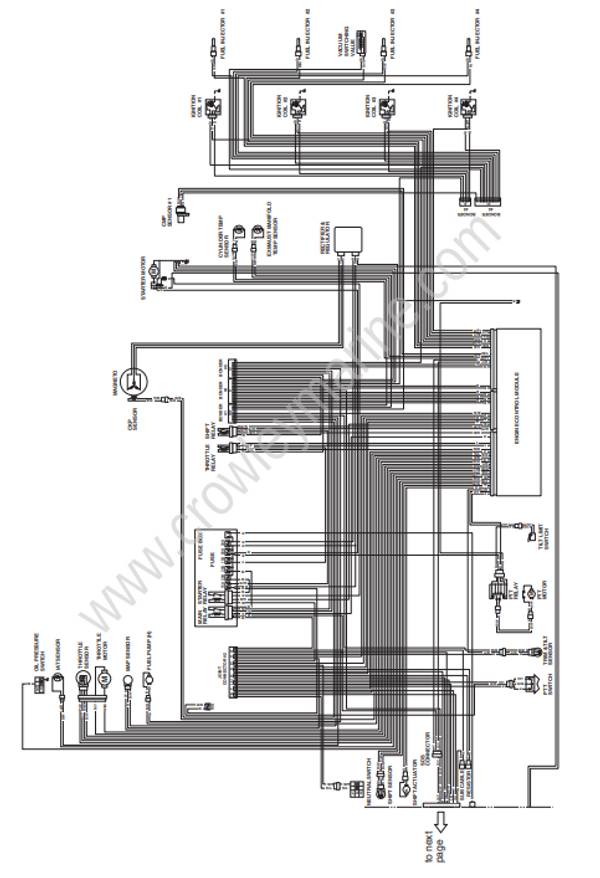

WIRING DIAGRAM

DF150TG/ZG

DF175TG/ZG
